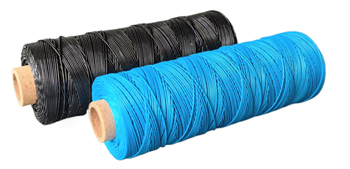

PVDF COATED BRAID YARN
PVDF is a kind of high-performance plastic, which belongs to a kind of fluorine material. By coating high-strength fiber, the braid yarn has excellent heat resistance (150℃) and outstanding abrasion resistance and chemical resistance. |
|
PROPERTIES
| Type | PPVDF071 | |
| Diameter (mm) | 0.71±5% | |
| Tensile Strength（N) | ≥75 | |
| Yield(m/kg) | 2015±5% | |
| Max.Serv.Temp(℃) | 150 | UL-1581 |
| Cold Flex Tolerance(℃) | -54 | UL-1581 |
| Fire Resistance | Pass | UL94- V0 |
| Brittleness Temp(℃) | -40 | ASTM D-746 |
| Compliant with REACH, RoHS and additional regulated requirements | ||
● Outstanding weather-ability, high & low temperature stability
● Excellent abrasion resistance
●Outstanding resistance to engine fluids and chemical fluids
